Palm Engineering. Laboratory fume hoods provide a physical barrier to chemicals and their reactions by exhausting outside air. Also lab fume hoods are created to protect user from chemical vapors, dusts and mist.

Application

Fume hoods are mainly used for the R & D process where the hazardous fumes will be generated during the chemical reactions and it will harmful for the laboratory Chemist/ Scientist. Fume Hoods are useful for the industries like Pharmaceutical, Chemical, Clinic research centre. It is also used in Education industry.

Technical Specifications

Our Fume Hoods are aerodynamic design to get stable face velocity for suction of high, Medium and low density fumes generate in Fume Hood. Material of Construction

• CRCA/ Galvanized Iron Sheet (G.I.)
• Stainless Steel (SS)
• Polypropylene (PP)

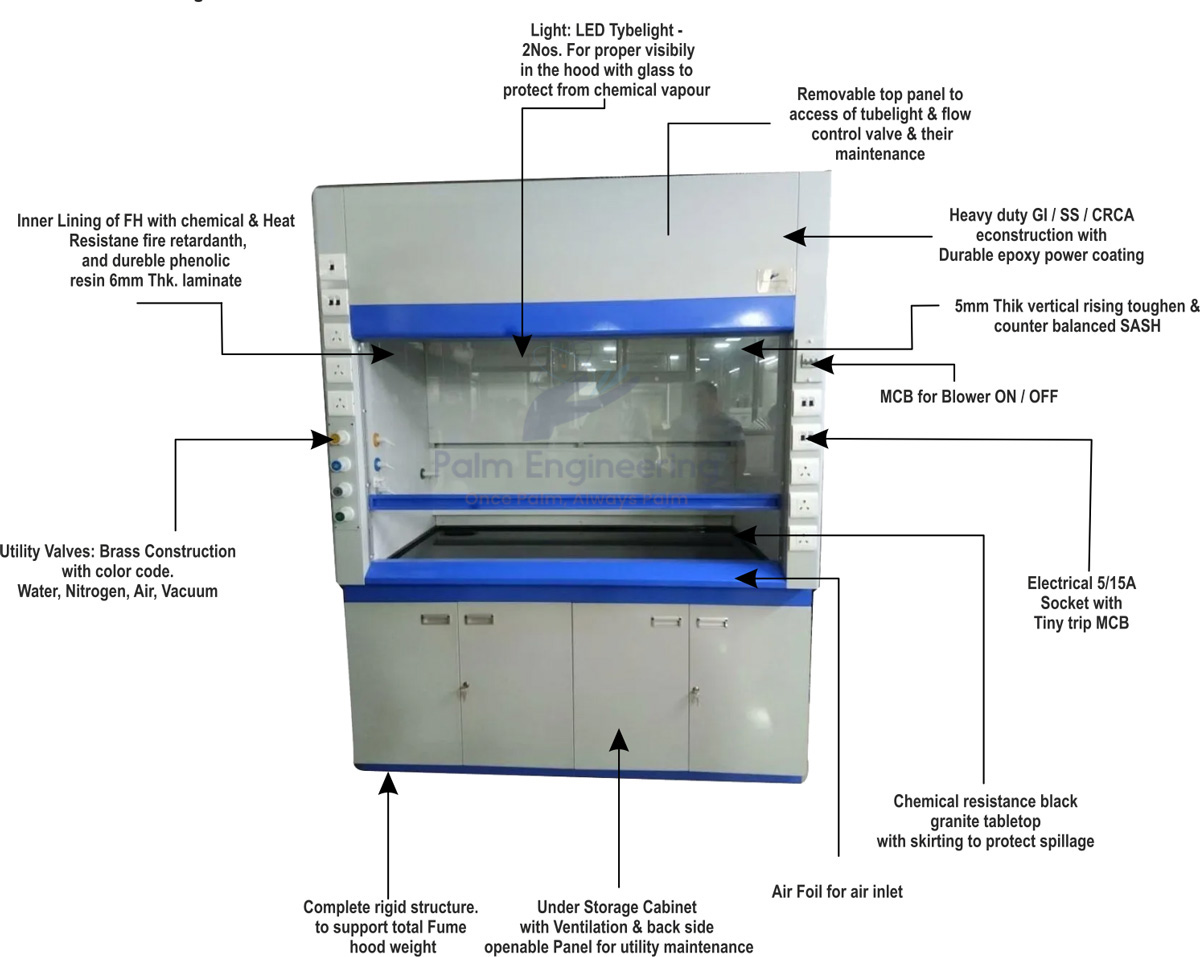

Accessories & Others

Fume Hood Inner lining with chemical resistance phenolic resin 6mm sheet / SS 304 Sheet / PP Sheet.

Sash of 5mm toughens glass with counter balance to achieve easy sliding movement
Work surface - Natural Granite / Ceramic/ P.P/SS
SS. Utility Valve — Water, Gas, Nitrogen Vacuum
LED Tube Light for Fume Hood
